Growlight | Agricultural Lighting Solutions

Code Key P O J M

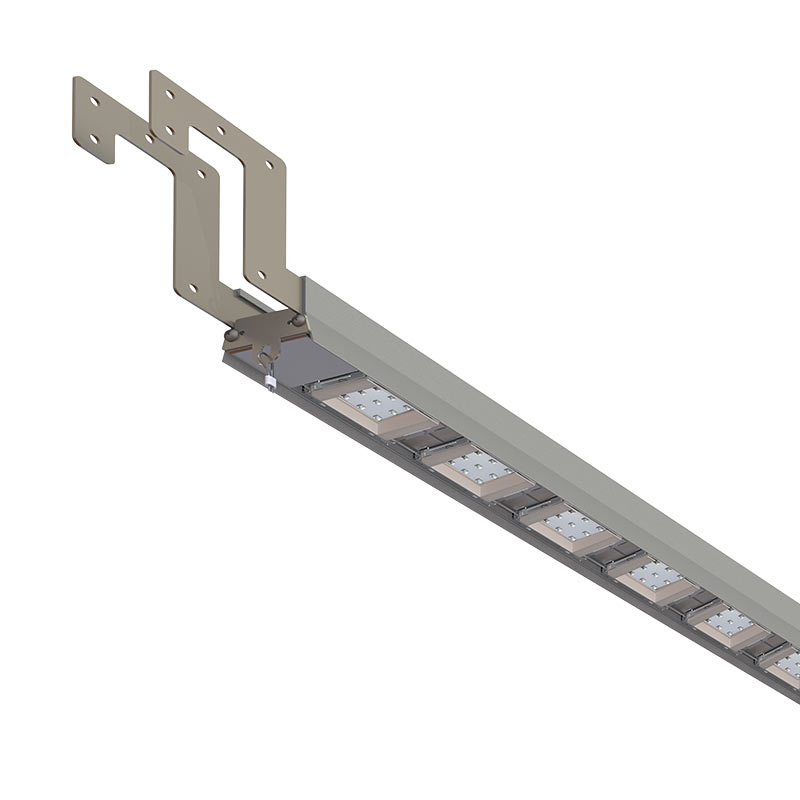

With modular LED structure, light spectrum and illumination power can be changed. The hook system provides easy installation without cable channel. Powerful option of Growlight family. TOPLIGHT segment aims at general lighting range for greenhouses via ceiling mount. HOOK also does not crop sunlight. Thanks to its thinner design which fits to all greenhouse construction profiles. Suits for all greenhouse facilities. Controllable, easy to mount, automation ready, flexible spectrum on request GROWLIGHT solution

Electromechanic Specifications

Adonized aluminum extruded profile
PVC protective covers
Stainless stell mounting brackets
Stainless stell hanger springs (for hook/chain etc)
Hidden cable grommet design
IP67 electrical connector
LED spectrum can be change on request
Modular LED structure

Power Options

Code	Power	Light Energy	Efficiency	PPF Distiribution	Dimension (L)
Hook Modular	480-640W	1370-1960µmol/s	2.6-3.2µmol/J	30˚,60˚,120˚	4000mm
Hook Modular	540-720W	1620-2150µmol/s	2.6-3.2µmol/J	30˚,60˚,120˚	4500mm
Hook Modular	600-800W	1880-2340µmol/s	2.6-3.2µmol/J	30˚,60˚,120˚	5000mm

Lens Options

OXW - 120˚

Mounting Options

M01 Surface/Cable Tray/Pendant Mounting

Connections Options

J02 1m Cable+IP67 Socket

Modular Power Options

Module Code	Power	Light Energy	Efficiency	Dimension (L)
MD1-8RB	15,19W	45µmol/s	2.96-3.70µmol/J	70mm
MD2-7R2B	16,24W	43µmol/s	2.64-3.30µmol/J	70mm
MD3-6R2DB	14,54W	39µmol/s	2.68-3.35µmol/J	70mm
MD4-6R3W	16,03W	45µmol/s	2.80-3.50µmol/J	70mm
MD5-6R2WD	15,26W	48µmol/s	3.10-3.87µmol/J	70mm
MD6-6RWDU	15,61W	44µmol/s	2.81-3.51µmol/J	70mm
MD7-6R2WU	16,31W	45µmol/s	2.75-3.43µmol/J	70mm
MD8-6WRUD	17,71W	44µmol/s	2.48-3.10µmol/J	70mm
