Code Key P O J M

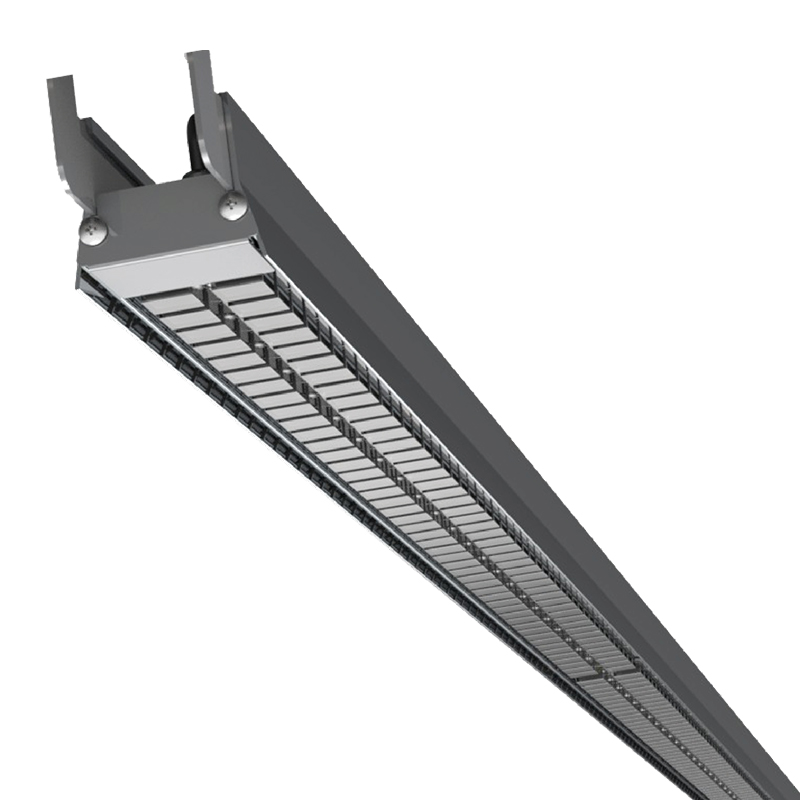

Hook. The hook system provides easy installation wtihout cable channel. Powerfull option of Growlight family. TOPLIGHT segments aims general lighting range for greenhouse via ceiling mount. HOOK also does nor crop sunlight. Thanks to its thinner design which fits to all greenhouse construction profiles. Stable, long life solution witg high IP&IK levels Suits for all greenhouse facilities. Controllable, easy to mount, automation ready, flexible spectrum on reques GROWLIGHT solution.
Electromechanic Specifications
- Adonized aluminum extruded profile
- PVC protective covers
- Stainless stell mounting brackets
- Stainless stell hanger springs (for hook/chain etc)
- Hidden cable grommet design
- IP67 electrical connector
- LED spectrum can be change on request

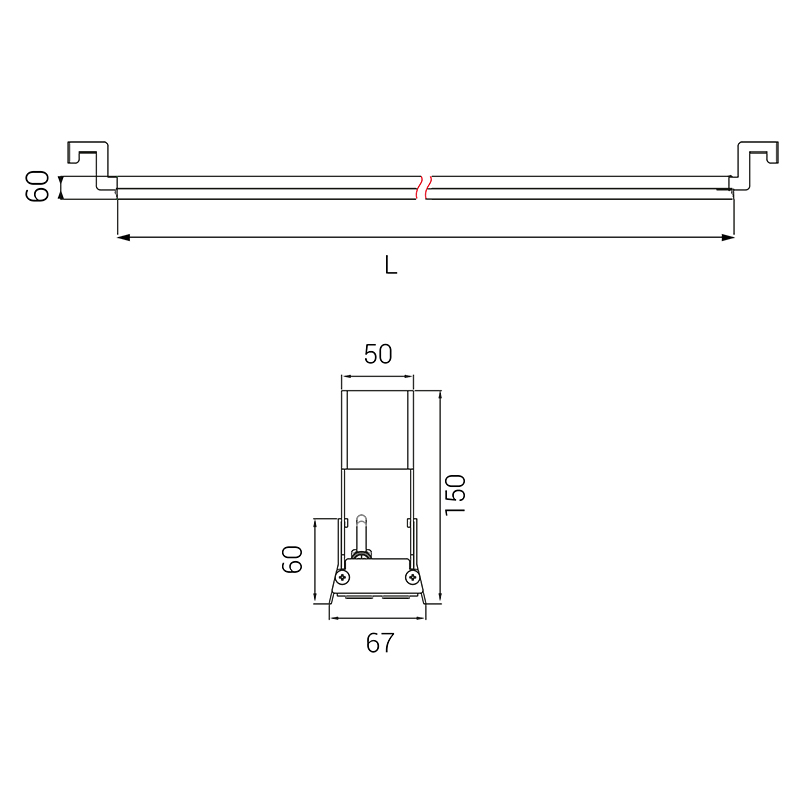

| Code | Power | Light Energy | Efficiency | PPF Distiribution | Dimension (L) |
| WSHH.400 | 350-510W | 1050-1500µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 4000mm |
| WSHH.450 | 480-540W | 1250-1650µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 4300mm |
| WSHH.500 | 520-580W | 1450-1800µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 4800mm |
|
O
Lens Options
|
||||||
|
||||||
|
M
Mounting Options
|
||
|
||
|
J
Connections Options
|
||
|
||
Possible Solutions
-
TOP Growlight
-
Inter Growlight
-
TOP & Inter Growlight
-
Rack Growlight
