Code Key P O J M

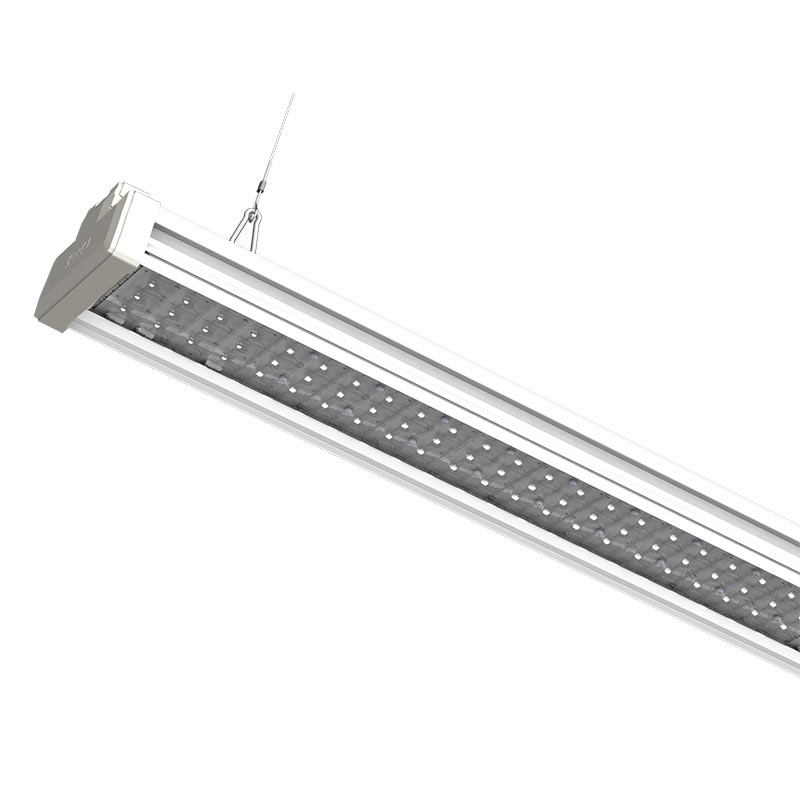

Groot. A real superhero member of Growlight family. TOPLIGHT segment aims general lighting range for greenhouse via ceiling mount. Stable, long life solution with high IP&IK levels. Suit for all freenhouse facilities. Controllable, east to mount, automation ready, flexible spectrum on request GROWLIGHT solution. Expanding options with special body design.
Electromechanic Specifications
- Adonized aluminum extruded profile
- UV protected PVC end caps
- High efficient transparent PMMA diffuser
- Stainless stell mounting brackets
- Stainless stell hanger springs (for hook/chain etc)
- Hidden cable grommet design
- IP67 electrical connector
- Modular body design with 2x/3x expanding options
- LED spectrum can be change on request

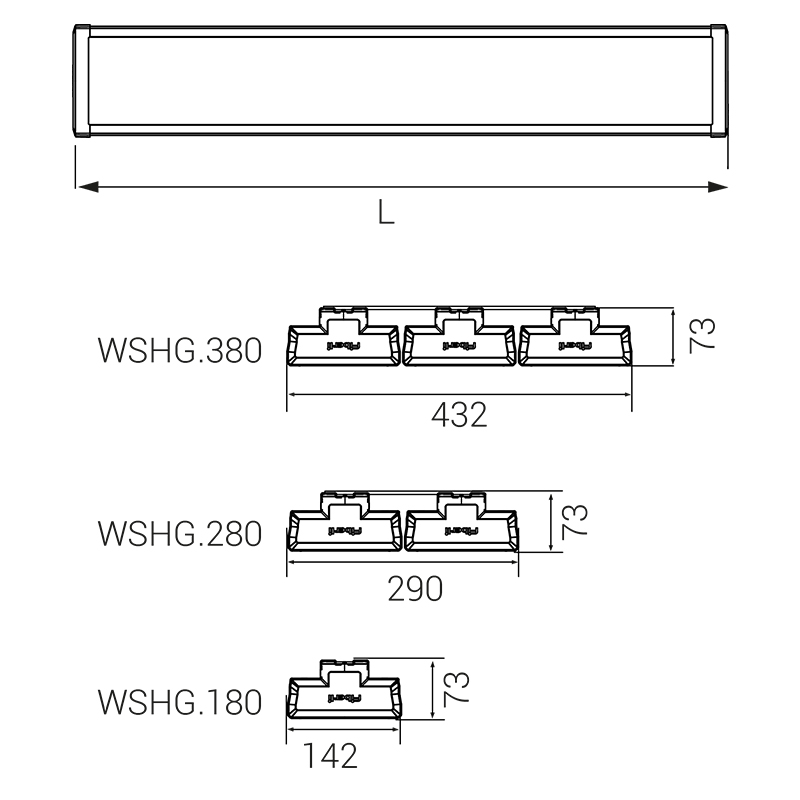

| Code | Power | Light Energy | Efficiency | PPF Distiribution | Dimension (L) |
| WSHG.180 | 160-210W | 410-620µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 823mm |
| WSHG.280 | 320-420W | 820-1240µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 823mm |
| WSHG.380 | 480-630W | 1230-1860µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 823mm |
| WSHG.380UV | 250-300W | 650-1000µmol/s | 2.6-3.2µmol/J | 30˚,60˚,120˚ | 1225mm |
|
O
Lens Options
|
||||||
|
||||||
|
M
Mounting Options
|
||
|
||
|
J
Connections Options
|
||
|
||
Possible Solutions
-
TOP Growlight
-
Inter Growlight
-
TOP & Inter Growlight
-
Rack Growlight
